Name of Panel: BIS Certified polycrystalline Modules 165-Watt 36 Cell Solar Panel
Model Number: Rhine 36 Cell Series 165wp
Capacity of Panel: 165 Watt
Maximum Efficiency: 17.05%
Weight in Gram/KG: 11 kg Approx.
Dimensions (L x W x H): 1495 x 670 x 35 mm 3
Solar Cells: Polycrystalline 156.75 mm x 156.75 mm
Cell Orientation: 36 Cells (9 x 4)
Front Glass: 3.2mm toughened textured glass

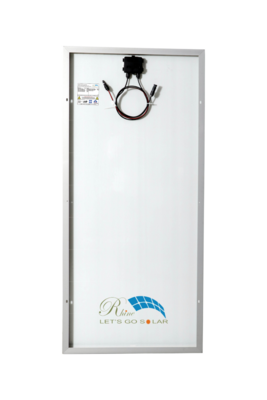

Back Sheet: White
Frame: Anodized Aluminum Alloy
Junction Box, Cable & Connectors: IP67, 2 Diode, 4mm 2 AWG 1000V MC4 connectors

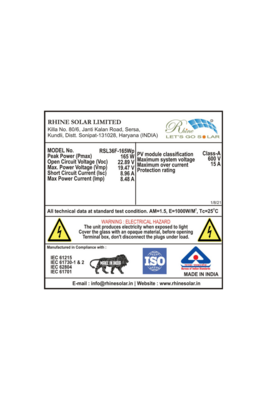

Performance/Efficiency of Panel:Short-Circuit Current (Isc): 8.96 Amps, Operating Voltage (Vmp): 19.47 V, Optimum Operating Current (Imp): 8.48 Amps, Open-Circuit Voltage (Voc): 22.89 Volt, Module Efficiency: 16.90%; Operating Temperature: -40o C to 80o C, Maximum System Voltage: 600 V, Maximum Series Fuse Rating: 15 Amp, Application Classification: Class A, Power Tolerance: +- 3%
Warranty: 5 Year Product Workmanship Warranty. 10 years Linear Power Warranty
Package includes: Solar Panel with Junction Box and Cable
Application of Panel: Best for Residential & Commercial installation, Solar Water Pumps, Solar Projects, Filling Stations, EV Charging Stations. Pre-drilled holes on the back of the panel for fast mounting and securing. Best compatible with 12V Inverter and Battery.
Features of Panel: Solar panels are BIS certified as per IS/IEC standards; Space Requirement - 12 sq. feet (approx.) for single panel and 1000mm length meter cable for connection; Comes with premium MC4 connecting plugs which ensures a reliable connection.
Designed using a silver anodized high-tech aluminum frame that withstands higher wind and snow loads up to 4000/5400 Pa (IEC) which allows the panels to last for decades
Equipped with high-performance Grade A solar cells with PID resistant technology. The Grade A silicone cells come integrated with a powerful reflector that redirects sunlight back from the cell. This technology leads to the generation of up to 5 percent more power
