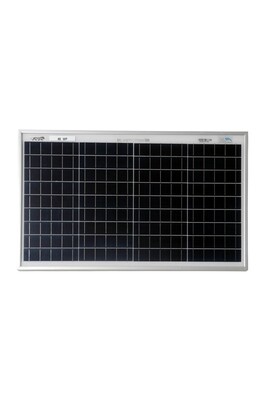

Name of Panel: BIS Certified polycrystalline Modules 75-Watt 36 Cell Solar Panel
Model Number: Rhine 36 Cell Series 75wp
Capacity of Panel: 75 Watt
Maximum Efficiency: 15.42%
Weight in Gram/KG: 6 kg Approx.
Dimensions (L x W x H): 776 x 670 x 35 mm
Solar Cells: Polycrystalline 78.37 mm x 156.75 mm
Cell Orientation: 36 Cells (9 x 4)
Front Glass: 3.2mm toughened textured glass
Back Sheet: White
Frame: Anodized Aluminum Alloy
Junction Box, Cable & Connectors: IP67, 2 Diode.
Performance/Efficiency of Panel:Short-Circuit Current (Isc): 4.43 Amps, Operating Voltage (Vmp): 18.50 V, Optimum Operating Current (Imp): 4.06 Amps, Open-Circuit Voltage (Voc): 22.25 Volt, Module Efficiency: 14.46%; Operating Temperature: -40o C to 80o C, Maximum System Voltage: 600 V, Maximum Series Fuse Rating: 10 Amp, Application Classification: Class A, Power Tolerance: +- 3%
Warranty: 5 Year Product Workmanship Warranty. 10 years Linear Power Warranty
Package includes: Solar Panel with Junction Box.
Application of Panel: Best for use in home lighting & small battery charging. Pre-drilled holes on the back of the panel for fast mounting and securing. Best for 12 volts charging and multiple panels can be connected in series for 12-volt battery.
Features of Panel: Solar panels are BIS certified as per IS/IEC standards. Space Requirement 6 sq. feet (approx.) for single panel.
Designed using a silver anodized high-tech aluminum frame that withstands higher wind and snow loads up to 4000/5400 Pa (IEC) which allows the panels to last for decades.
Equipped with high-performance Grade A solar cells with PID resistant technology. The Grade A silicone cells come integrated with a powerful reflector that redirects sunlight back from the cell. This technology leads to the generation of up to 5 percent more power.
