60 Watt 36Cell Monocrystalline Solar Panel Street Light
+5
+4
+3
+2

60 Watt 36Cell Monocrystalline Solar Panel Street Light

Home/Store/Monocrystalline Solar Panels
₹3,300 INR
Sold out
was ₹7,000 INR Save ₹3,700 INR
Sold out
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
60 Watt 36Cell Monocrystalline Solar Panel Street Light
Home/Store/Monocrystalline Solar Panels
Product Details

60 Watt 36Cell Monocrystalline Solar Panel Street Light

Name of Panel: BIS Certified Monocrystalline Modules 60 Watt 36 Cell Solar Panel

Model Number: Rhine 36 Cell Series 60wp

Capacity of Panel: 60 Watt

Maximum Efficiency: 17.20%

Weight in Gram/KG: 3 kg Approx.

Glass Size: 1020mm x 354mm / 900mm x 354mm

Solar Cells: Monocrystalline 47.25 mm x 158.75 mm

Cell Orientation: 36 cells (18 x 2)

Front Glass: 3.2mm toughened textured glass

Back Sheet: White

Performance/Efficiency of Panel:Short-Circuit Current (Isc): 3.12 Amps, Operating Voltage (Vmp): 20.60 V, Optimum Operating Current (Imp): 2.92 Amps, Open-Circuit Voltage (Voc): 24.20 Volt, Module Efficiency: 17.50%; Operating Temperature: -40o C to 80o C, Maximum System Voltage: 600 V, Application Classification: Class A, Power Tolerance: +- 3%

Warranty: 5 Year Product Workmanship Warranty. 10 years Linear Power Warranty

Package includes: Solar Panel with Junction Box.

Application of Panel: Best for all-in-one street light.

Features of Panel: Solar panels are BIS certified as per IS/IEC standards. Space Requirement 4 sq. feet (approx.) for single panel.

Equipped with high-performance Grade A solar cells with PID resistant technology. The Grade A silicone cells come integrated with a powerful reflector that redirects sunlight back from the cell. This technology leads to the generation of up to 5 percent more power



    Frequently Asked Question on 60 Watt Street Light Solar Panel (1 to 5)
  • Q1. What is the capacity of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A1: The capacity of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is 60 Watt.

  • Q2: What is the maximum efficiency of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A2: The maximum efficiency of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is 17.20%.

  • Q3: What are the dimensions of the glass on the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A3: The glass size for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is 1020mm x 354mm or 900mm x 354mm.

  • Q4: What is the warranty for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A4: The Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel comes with a 5-year product workmanship warranty and a 10-year linear power warranty.

  • Q5: What is the recommended application for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A5: The Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is best suited for all-in-one street lights.

    FAQ on Rhine Solar 60 Watt Street Light Polycrystalline Panel (6 to 10)
  • Q6: What type of solar cells does the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel use?
  • A6: The Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel uses Monocrystalline solar cells measuring 47.25 mm x 158.75 mm.

  • Q7: What is the operating temperature range for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A7: The operating temperature range for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is from -40°C to 80°C.

  • Q8: What is the package inclusion for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A8: The package includes the Rhine Solar Panel with Junction Box.

  • Q9: What is the power tolerance for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A9: The power tolerance for the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is +- 3%.

  • Q10: How much space is needed for a single panel installation of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A10: Approximately 4 square feet of space is required for a single panel installation of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel.

    More Details on Rhine's 60W Street Light Solar Panel (11 to 15)
  • Q11: What is the back sheet material of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A11: The back sheet of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is white in color.

  • Q12: How is sunlight redirected to enhance power generation in the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A12: The panel uses Grade A solar cells with PID resistant technology, integrated with a powerful reflector that redirects sunlight back from the cell, resulting in up to 5% more power generation.

  • Q13: What is the Short-Circuit Current (Isc) of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A13: The Short-Circuit Current (Isc) of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is 3.12 Amps.

  • Q14: What is the Open-Circuit Voltage (Voc) of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A14: The Open-Circuit Voltage (Voc) of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is 24.20 Volts.

  • Q15: What is the application classification of the Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel?
  • A15: The Rhine Solar 60 Watt 36Cell Monocrystalline Solar Panel is classified as Class A for applications.

    Is there anything else you'd like to know or inquire about? Feel free to ask!
Show More
You May Also Like
Rhine 36 Cell Series 60wp
60 Watt 36Cell Best Buy Price Polycrystalline Solar Panel
60 Watt 36Cell Best Buy Price Polycrystalline Solar Panel
60 Watt 36Cell Best Buy Price Polycrystalline Solar Panel
was ₹6,500 INR
Save ₹3,500 INR
₹3,000 INR
Out of stock
Rhine 36 Cell Series 100wp
100 Watt 36 Cell Solar Panel Buy Polycrystalline Modules
100 Watt 36 Cell Solar Panel Buy Polycrystalline Modules
100 Watt 36 Cell Solar Panel Buy Polycrystalline Modules
was ₹9,500 INR
Save ₹3,000 INR
₹6,500 INR
Out of stock
Rhine 60 Cell Series 310wp
310 Watt Monocrystalline Solar Panel Buy Price in India
310 Watt Monocrystalline Solar Panel Buy Price in India
310 Watt Monocrystalline Solar Panel Buy Price in India
was ₹16,500 INR
Save ₹7,200 INR
₹9,300 INR
Rhine 60 Cell Series 270wp
270 Watt Best in Quality Made in India Solar Panels
270 Watt Best in Quality Made in India Solar Panels
270 Watt Best in Quality Made in India Solar Panels
was ₹15,500 INR
Save ₹6,900 INR
₹8,600 INR
Rhine 156 Cell Series 600wp

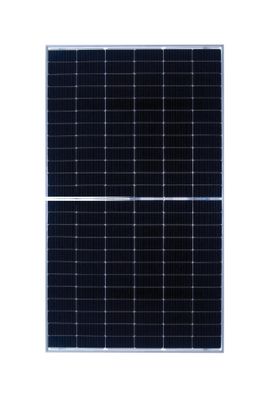

600 Watt Mono Perc Half-cut Solar Panel Order Online
