540 Watt DCR Mono Perc Solar Panel Made in India

Home/Store/DCR Solar Panels
₹16,500 INR
Rhine 144 Cell Series 540wp
was ₹29,500 INR Save ₹13,000 INR
In stock
1
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
540 Watt DCR Mono Perc Solar Panel Made in India
Home/Store/DCR Solar Panels
Product Details

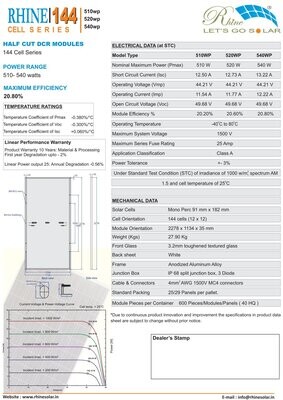

540 Watt Half-cut Mono Perc DCR Solar Panel Price

Name of Panel: BIS Certified Half-cut Mono Perc DCR Module 540 Watt 144 Cell Solar Panel

Model Number: Rhine 144 Cell Series 540wp (RSL540M)

Capacity of Panel: 540 Watt

Maximum Efficiency: 20.80%

Weight in Gram/KG: 27.90 kg Approx.

Dimensions (L x W x H): 2278 x 1134 x 35 mm 3

Solar Cells: Mono Perc 91 mm x 182 mm

Cell Orientation: 144 cells (12 x 12)

Front Glass: 3.2mm toughened textured glass

Back Sheet: White

Frame: Anodized Aluminum Alloy

Standard Packing: 25/29 Panels per pallet

Module Pieces per Container: 600 Pieces/Modules/Panels ( 40 HQ )

Junction Box, Cable & Connectors: IP 68 split junction box, 3 Diode, 4mm 2 AWG 1500V MC4 connectors

Performance/Efficiency of Panel: Short-Circuit Current (Isc): 13.22 Amps, Operating Voltage (Vmp): 44.21 V, Optimum Operating Current (Imp): 12.22 Amps, Open-Circuit Voltage (Voc): 49.68 Volt, Module Efficiency: 20.80%; Operating Temperature: -40o C to 80oC, Maximum System Voltage: 1500 V, Maximum Series Fuse Rating: 25 Amp, Application Classification: Class A, Power Tolerance: +- 3%

Warranty: Product Warranty 10 Years: Material & Processing First year Degradation upto - 2%
Linear Power output 25: Annual Degradation -0.56%

Package includes: Solar Panel with Junction Box and Cable

Application of Panel: Best for Residential & Commercial installation, Solar Water Pumps, Solar Projects, Filling Stations, EV Charging Stations. Pre-drilled holes on the back of the panel for fast mounting and securing. Best compatible with 24V Inverter and Battery (Two battery of 12V each)

Features of Panel: Solar panels are BIS certified as per IS/IEC standards; Space Requirement – 20 sq. feet (approx.) for single panel and 1000mm length meter cable for connection; Comes with premium MC4 connecting plugs which ensures a reliable connection.

Designed using a silver anodized high-tech aluminum frame that withstands higher wind and snow loads up to 4000/5400 Pa (IEC) which allows the panels to last for decades

Equipped with high-performance Grade A solar cells with PID resistant technology. The Grade A silicone cells come integrated with a powerful reflector that redirects sunlight back from the cell. This technology leads to the generation of up to 5 percent more power


    Frequently Asked Question on 540Watt Half-cut Mono Perc DCR Panel (1 to 5)
  • Q1: What is the name and model of the Rhine Solar 540 Watt panel?
  • A1: The panel is named "BIS Certified Half-cut Mono Perc DCR Module 540 Watt 144 Cell Solar Panel," and its model number is "Rhine 144 Cell Series 540wp (RSL540M)."

  • Q2: What is the maximum efficiency of the Rhine Solar 540 Watt panel?
  • A2: The maximum efficiency of the Rhine Solar 540 Watt panel is 20.80%.

  • Q3: What is the warranty coverage for the Rhine Solar 540 Watt panel?
  • A3: The product warranty covers 10 years, with first-year degradation up to -2%. It also has a linear power output warranty with an annual degradation of -0.56%.

  • Q4: What are the recommended applications for the Rhine Solar 540 Watt panel?
  • A4: The panel is best suited for residential and commercial installations, solar water pumps, solar projects, filling stations, and EV charging stations. It is also compatible with 24V inverters and batteries (two 12V batteries).

  • Q5: What features make the Rhine Solar 540 Watt panel stand out?
  • A5: The panel is BIS certified, requiring approximately 20 sq. feet for a single panel and comes with premium MC4 connecting plugs for a reliable connection. It features a high-tech aluminum frame that can withstand high wind and snow loads and utilizes Grade A solar cells with PID-resistant technology for increased power generation.

    FAQ on Rhine Solar 540Watt Half-cut Mono Perc DCR Panel (6 to 10)
  • Q6: What are the specifications of the Rhine Solar 540 Watt panel's solar cells?
  • A6: The panel features Mono Perc solar cells that are 91 mm x 182 mm in size and has a total of 144 cells arranged in a 12x12 orientation.

  • Q7: What are the physical dimensions and weight of the Rhine Solar 540 Watt panel?
  • A7: The panel's dimensions are 2278 mm in length, 1134 mm in width, and 35 mm in height. It weighs approximately 27.90 kg.

  • Q8: Can you tell me about the materials used for the front glass and back sheet of the Rhine Solar 540 Watt panel?
  • A8: The front glass is made of 3.2mm toughened textured glass, and the back sheet is white in color.

  • Q9: What type of frame does the Rhine Solar 540 Watt panel have?
  • A9: The panel is equipped with an anodized aluminum alloy frame.

  • Q10: How is the Rhine Solar 540 Watt panel designed to withstand environmental conditions?
  • A10: The panel is designed with a silver anodized high-tech aluminum frame that can endure higher wind and snow loads up to 4000/5400 Pa (IEC), ensuring its durability and longevity.

    Asked Question on Rhine's Half-cut Solar Panel (11 to 15)
  • Q11: What junction box and connectors are included with the Rhine Solar 540 Watt panel?
  • A11: The panel comes with an IP 68 split junction box, 3 diodes, and 4mm2 AWG 1500V MC4 connectors.

  • Q12: What is the operating temperature range and maximum system voltage for the Rhine Solar 540 Watt panel?
  • A12: The panel's operating temperature range is from -40°C to 80°C, and it has a maximum system voltage of 1500V.

  • Q13: What is the maximum series fuse rating for the Rhine Solar 540 Watt panel?
  • A13: The maximum series fuse rating for the panel is 25 Amps.

  • Q14: Can you provide details on the application classification and power tolerance of the Rhine Solar 540 Watt panel?
  • A14: The panel has an application classification of Class A and a power tolerance of ±3%.

  • Q15: Does the Rhine Solar 540 Watt panel come with any additional accessories?
  • A15: The package includes the solar panel with a junction box and cable, making it ready for installation.

    Is there anything else you'd like to know or inquire about? Feel free to ask!
