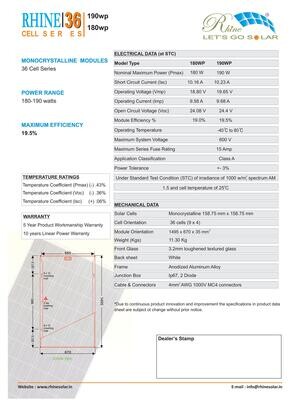

Name of Panel: BIS Certified Monocrystleline Modules 190 Watt 36 Cell Solar Panel
Model Number: Rhine 36 Cell Series 190wp
Capacity of Panel: 190 Watt
Maximum Efficiency: 19.5%
Weight in Gram/KG: 11 kg Approx
Dimensions (L x W x H): 1495 x 670 x 35 mm 3
Solar Cells: Monocrystalline 158.75 mm x 158.75 mm
Cell Orientation: 36 Cells (9 x 4)
Front Glass: 3.2mm toughened textured glass
Back Sheet: White
Frame: Anodized Aluminum Alloy
Junction Box, Cable & Connectors: IP67, 2 Diode, 4mm 2 AWG 1000V MC4 connectors

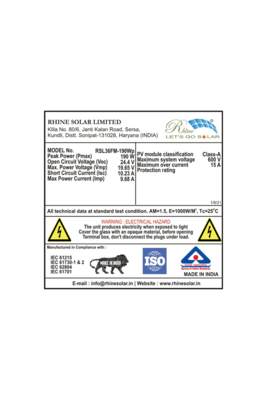

Performance/Efficiency of Panel: Short-Circuit Current (Isc): 10.23 Amps, Operating Voltage (Vmp): 19.65 V, Optimum Operating Current (Imp): 9.68 Amps, Open-Circuit Voltage (Voc): 24.4 Volt, Module Efficiency: 19.5%; Operating Temperature: -40o C to 80o C, Maximum System Voltage: 600 V, Maximum Series Fuse Rating: 15 Amp, Application Classification: Class A, Power Tolerance: +- 3%
Warranty: 5 Year Product Workmanship Warranty. 10 years Linear Power Warranty
Package includes: Solar Panel with Junction Box and Cable
Application of Panel: Best for Residential & Commercial installation, Solar Water Pumps, Solar Projects, Filling Stations, EV Charging Stations. Pre-drilled holes on the back of the panel for fast mounting and securing. Best compatible with 24V Inverter and Battery (Two battery of 12V each)
Features of Panel: Solar panels are BIS certified as per IS/IEC standards; Space Requirement - 40 sq. feet (approx.) for single panel and 1000mm length meter cable for connection; Comes with premium MC4 connecting plugs which ensures a reliable connection.
Designed using a silver anodized high-tech aluminum frame that withstands higher wind and snow loads up to 4000/5400 Pa (IEC) which allows the panels to last for decades
Equipped with high-performance Grade A solar cells with PID resistant technology. The Grade A silicone cells come integrated with a powerful reflector that redirects sunlight back from the cell. This technology leads to the generation of up to 5 percent more power
To know the exact value or amount you are going to save in electricity units or bill amount, we suggest you to consider it by getting calculated based on your monthly consumptions and usages. You can talk to your solar energy consultant for the same and accordingly plan to order the 190 watt solar panel modules with us.

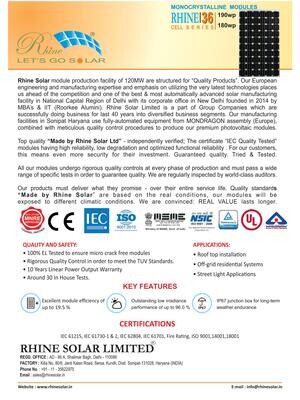

Rhine Solar Ltd is manufacturer of solar panel cells and modules and offer them backed with guarantee of performance and durability. We sell solar panels and does not provide them on lease. For lease options you can talk to your lending company, bank or credit card issuing company. You may order Solar Panels with Rhine Solar and pay using your Credit Card, Debit Card, Netbanking and UPI through secure payment gateways.
Rhine Solar pride to offer 5 Years product workmanship warranty and 10 years Linear Power Warranty with it's 190 watt solar panels. You may get warranty document/card with each order of solar panel modules which clearly mention these statement. Please read the document carefully and contact us if you have any query. We also pride to offer after-sales support to our valued customers.
